V50-3 + NPE-280 5093526

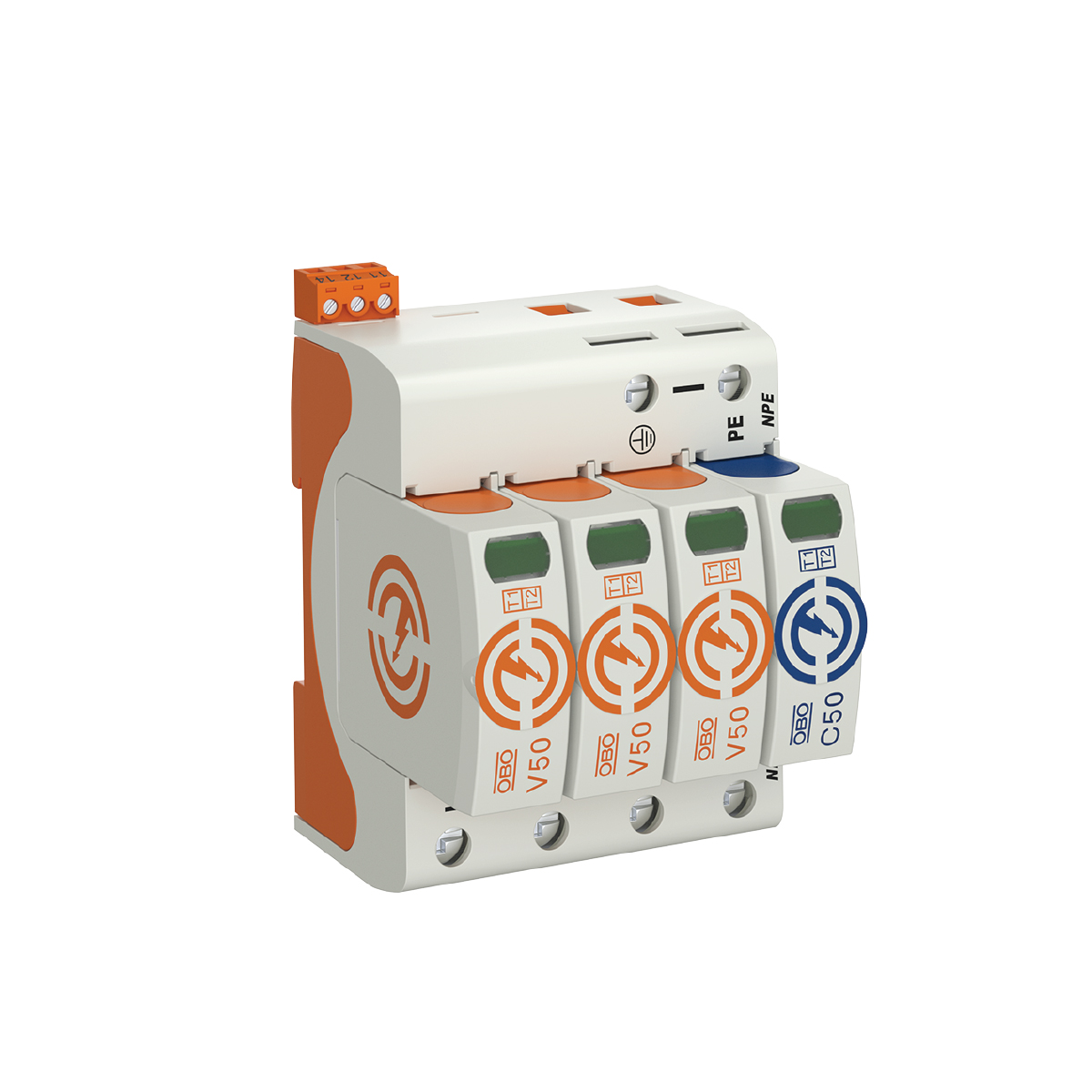

CombiArrester 1+2 V50-3+NPE-280

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

Make Enquiry
  • For the equipotential bonding of lightning current to VDE 0185-305 (IEC 62305)
  • Lightning current discharge capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total
  • Modular, plug-in arrestor with dynamic cut-off unit and visual status display
  • Locking mechanism with vibration protection and voltage keying
  • Halogen-free plastic (UL 94 V-0)
  • The remote signalling (FS) variants have a potential-free changeover contact for remote signalling

TECHNICAL SPECIFICATIONS

Additional information

Brand

OBO BETTERMANN
Series

Lightning Current Combination Arrestor
Type

V50-3+NPE-280
Item no.

5093526
Pole version

3+N/PE
Machine dimension L x W x H

90mm x 71.2mm x 73mm
Net weight

58,80 kg/100 pcs
Nominal voltage

230,00 V
Maximum continuous voltage AC

280,00 V
Protection rating

IP20

TECHNICAL SPECIFICATIONS

Additional information

Brand

OBO BETTERMANN
Series

Lightning Current Combination Arrestor
Type

V50-3+NPE-280
Item no.

5093526
Pole version

3+N/PE
Machine dimension L x W x H

90mm x 71.2mm x 73mm
Net weight

58,80 kg/100 pcs
Nominal voltage

230,00 V
Maximum continuous voltage AC

280,00 V
Protection rating

IP20
