Capacitors Brand New

, ,

Capacitors and Reactors for Power Factor Correction.

Factory Matched to operate in Perfect Harmony



Brand new capacitor 2022

Make Enquiry

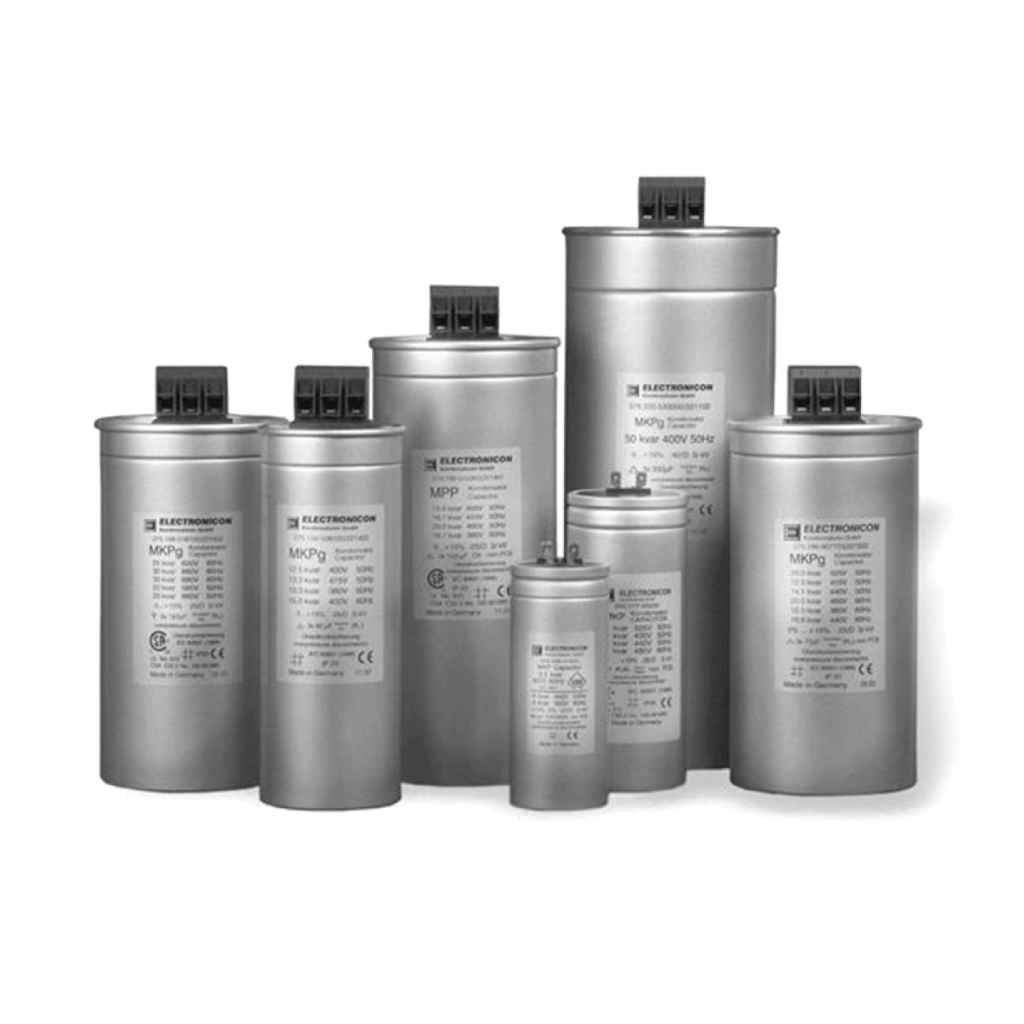

Power Factor Correction Capacitors

  • High Over-current Tolerances = < 170%
  • High Inrush Current = 600 times rated current In
  • Low Losses < 0.20 W / kVAr
  • Standard according to IEC 60831 (Part 1 & 2)
  • Tested approval: Sirim, UL, CSA, JKR
  • 40 kVAr for 440/525V come with single unit

TECHNICAL SPECIFICATIONS

Additional information

Brand

ELECTRONICON
Design

Pressed aluminium can with stud M12 x 16. aluminium lid
Internal Connection

Delta
Tolerance of capacitance

-5…+10%
Dielectric material

low-loss polypropylene, dry
Test voltage btw. terminals

2.15 x UN AC/2s
Max. inrush current

300 x IN
Dissipation losses

approx 0.25W/kvar
Max. relative humidity

95%
